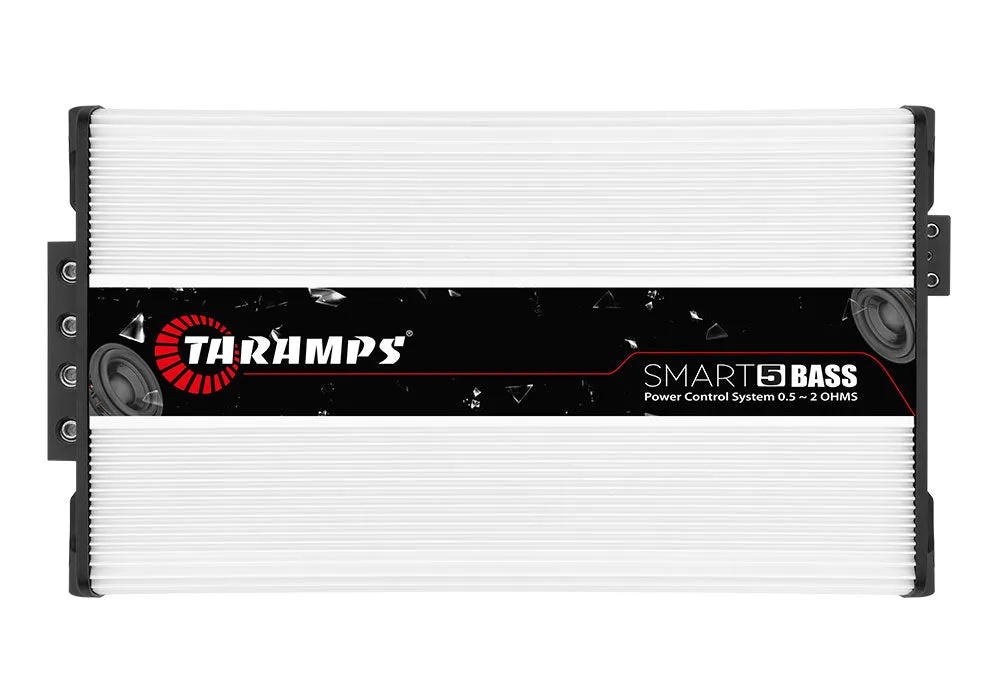

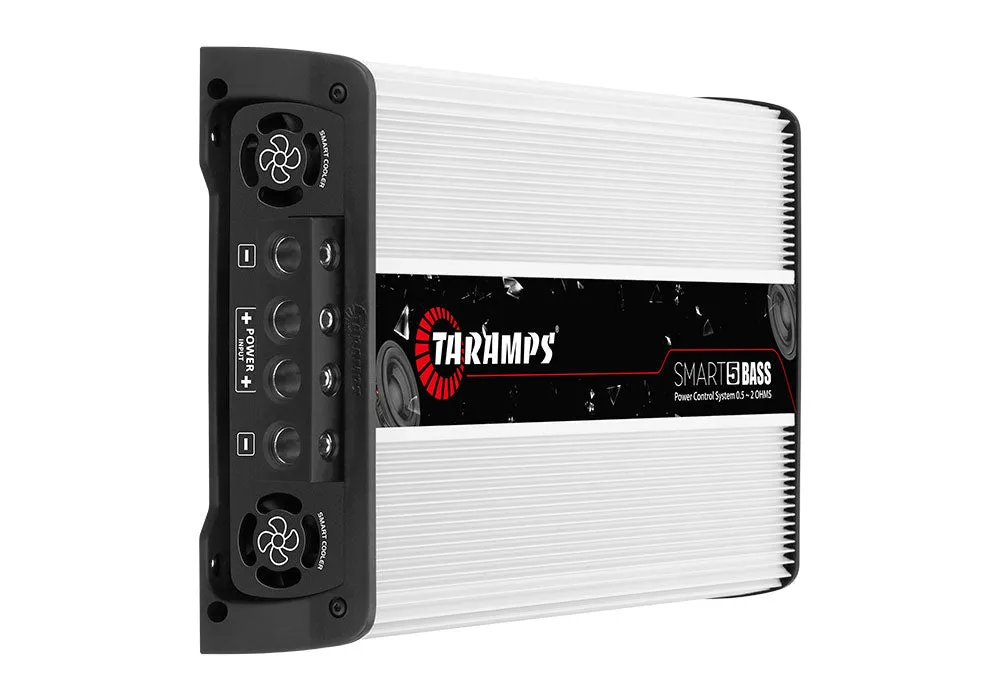

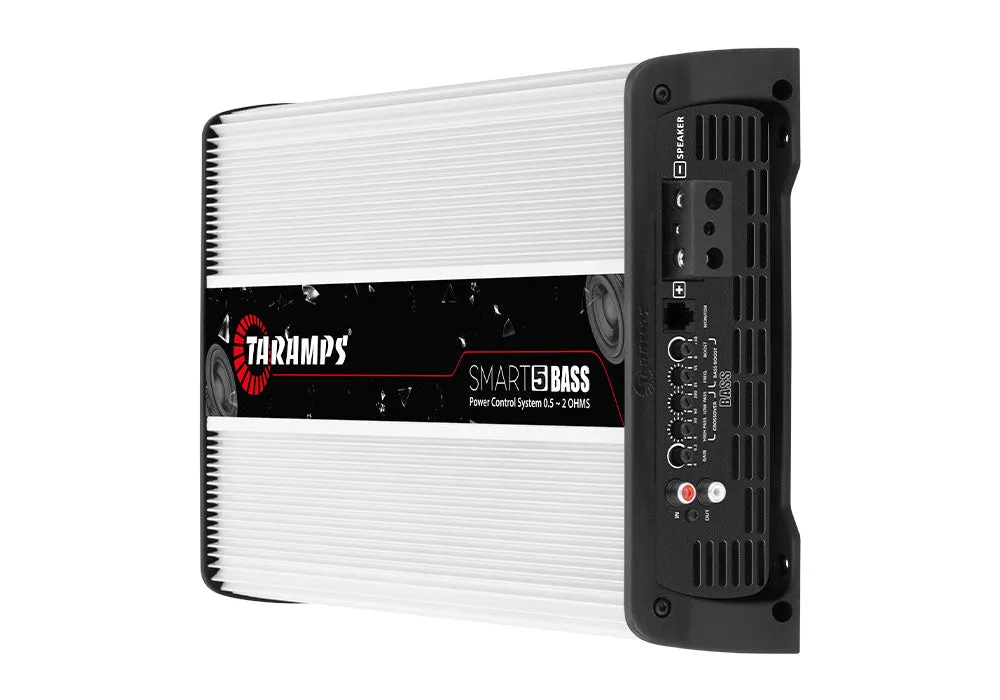

The SMART Line you already know, now has a new member! The SMART 5 BASS amplifier present the highest technology and performance for automotive sound systems. With the advantage of being multi-impedance, it delivers 5000WRMS between .5 and 2 ohms, furthermore the Power Control System technology ensures greater performance and safety. The already known V.U. with Smart LED, characteristic of the line, guarantees a unique design. It has an input gain adjustment that allows the use of players up to 4V RMS output level. Its robust connector allows the use of larger gauge power cables for higher performance. It’s an exclusive TARAMPS product with the best cost-benefit ratio in the car audio field.
-
Technical Information
OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - .5 ohm: 5000 Watts RMS
@ 12.6 VDC - 1 ohms: 5000 Watts RMS
@ 12.6 VDC - 2 ohms: 5000 Watts RMSINPUT SENSITIVITY 0.22V ~ 4V SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 8KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 8KHz (-12dB/8ª) Variable BASS BOOST Freq.: 35Hz ~ 55Hz
Boost: 0 ~ 10dBEFFICIENCY 84% @ 1 ohm
86% @ 2 ohmsINPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 1 ~ 2 ohms PROTECTION SYSTEM Output short circuit
low/high voltage protection
thermal protection.MIN. SUPPLY VOLTAGE 9.5VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 3.60A MAXIMUM MUSIC CONSUMPTION 236A @ 1 ohm
230A @ 2 ohmsMAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 472A @ 1 ohm
460A @ 2 ohmsDIMENSIONS (WXHXD) 8.97" x 2.75" x 16.85" (228 x 70 x 428mm) WEIGHT 11.24 lbs (5,10Kg)
