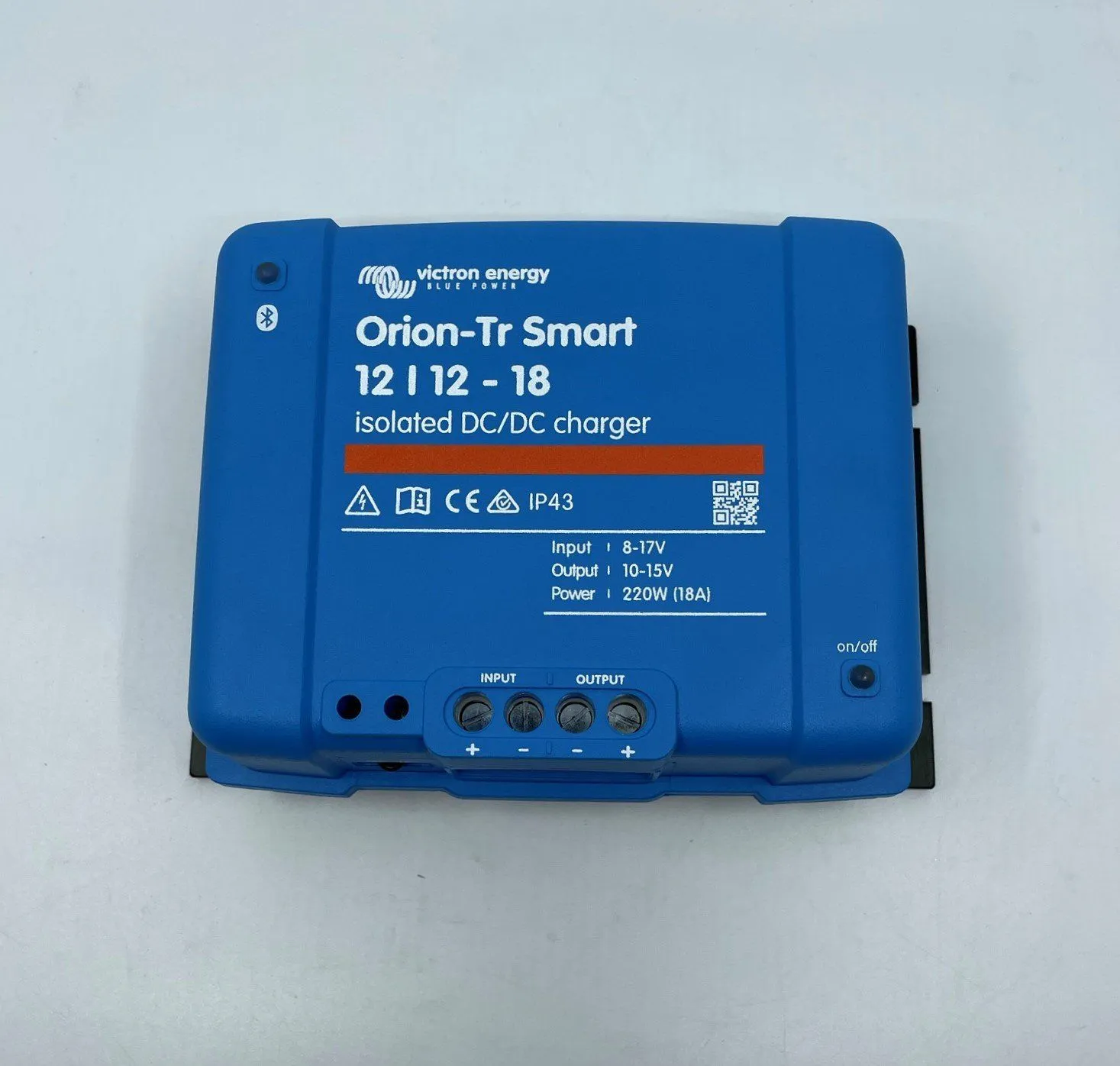

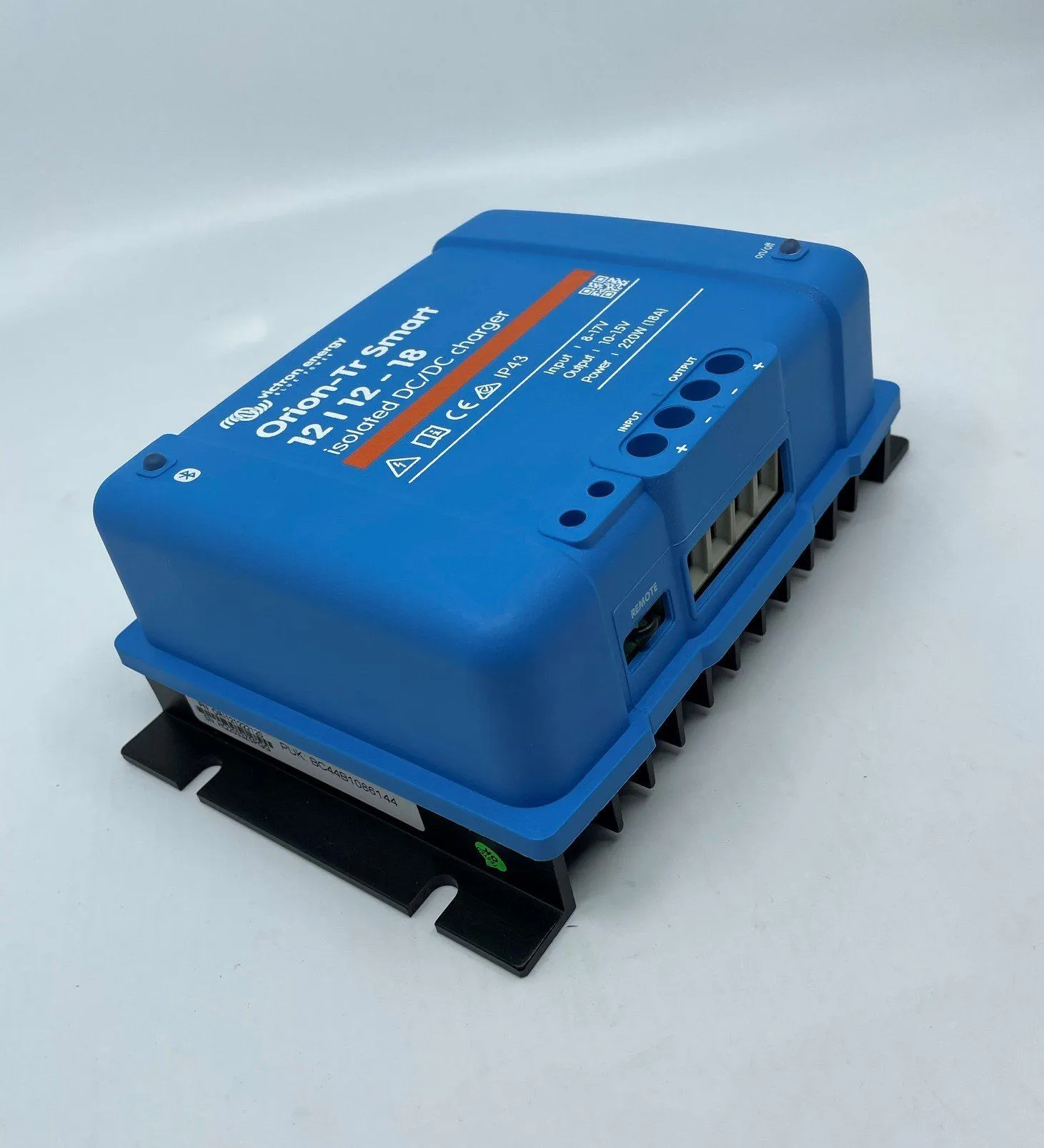

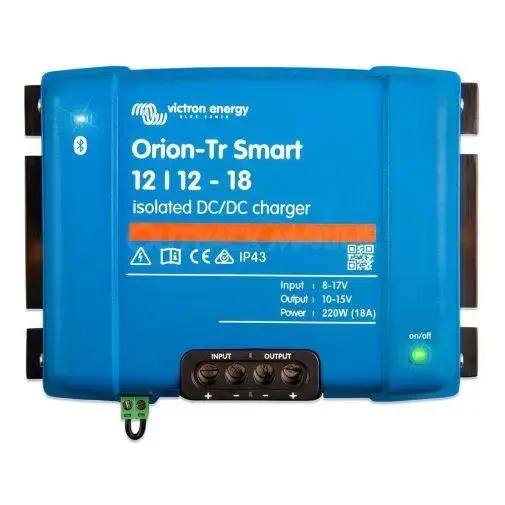

Victron Orion-Tr Smart 12V to 12V 18 Amp (220W) DC to DC Battery charger with galvanic isolation.

3-stage battery charge algorithm for Lead-acid, AGM and Lithium.

Bluetooth Smart built-in.

WE use this 18amp unit where the vehicles wiring is not heavy enough to manage a 30amp unit for Lithium Charging.

The Orion Tr-Smart charger can be used in 12V systems (24V models also available) and is suitable for both lead acid and lithium batteries.

Unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C and rated to IP43.

• Output Volts: 10-15 V adjustable
• output amps: 18A
• Input Volts: 8-17V
• 130 x 186 x 80 mm

Bluetooth Smart built-in

Any Bluetooth enabled Apple or Android smart phone, tablet or other device can be used to monitor, change settings and to update the charger when new software features become available via the VictronConnect App.

Smart alternator compatibility

Vehicle manufacturers are now introducing smart ECU (Engine Control Unit) controlled alternators to increase fuel efficiency and reduce emissions. Smart alternators deliver a variable output voltage and are shut down when they’re not needed.

The converter has a engine running detection mechanism. This prevents the converter from discharging the starter battery when the alternator does not supply power.

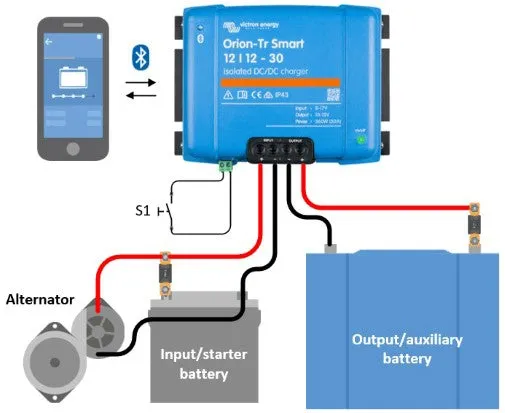

The Orion-Tr Smart Isolated DC-DC charger separates the starter battery from the service battery when the engine is not running.

Adaptive 3-stage charge algorithm: Bulk - Absorption - Float

• Bulk - During this stage the controller delivers as much charge current as possible to rapidly recharge the batteries.
• Absorption - When the battery voltage reaches the absorption voltage setting, the controller switches to constant voltage mode. For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. The fixed or adaptive mode can be chosen
  on the battery settings.
• Float - During this stage, float voltage is applied to the battery to maintain it in a fully charged state. When the battery voltage drops substantially below this level, due to a high load for example, during at least 1 minute, a new charge cycle will be triggered.
• Flexible charge algorithm - Programmable charge algorithm, and eight pre-programmed battery settings are configurable within the VictronConnect app.

Remote On-Off

Use the remote function to enable and disable the converter remotely with the remote on/off connector or using the VictronConnect app. Typical use cases include a user operated
hard wired switch and automatic control by for example a Battery Management System.

Electronic Protection

• Over-temperature protection and power derating when temperature is high.
• Overload protected.
• Short circuit protected.
• Connector over-temperature protection.
